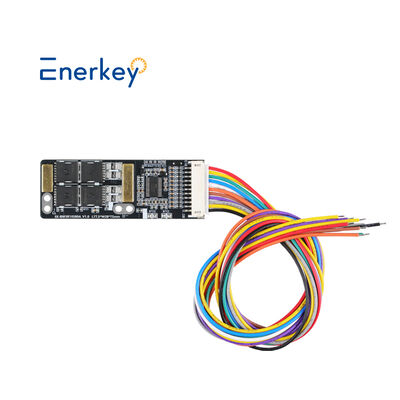

Enerkey Hardware 80A BMS 6s 80a 3s 4s 5s 6s 7s 8s 9s 10s 12v 24v 36v Lipo Lithium /Lifepo4 Battery Management System

Nombre De La Marca:	Enerkey
Número De Modelo:	EK-BM3R10S80A
Cuota De Producción:	50 piezas
Precio:	$8.1-$9
Detalles Del Embalaje:	Caja de papel fuerte +espuma EVA
Condiciones De Pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Shenzhen, China

Certificación:

ISO9001/CE/ROHS

Documento:

Nombre del producto:

Batería de litio BMS 3S-10S 80A

Espesor de cobre:

Aplicación:

Almacenamiento de energía para vehículos recreativos

Espesor de la tabla:

1.6 mm

Tipo de batería:

El valor de las emisiones de dióxido de carbono se calculará en función de las emisiones de dióxido

Rango de voltaje operativo permitido:

0-30V

Corriente de descarga nominalcorriente:

Corriente de inicio del pico:

Utilizado para:

Tabla de protección de las baterías de litio

Palabras clave:

3S-10S BMS

Material base:

Acabado de superficies:

Estaño de pulverización libre de plomo

Tamaño del producto:

Largo 77,5 x ancho 28 x profundidad 5 mm

Peso con paquete:

0.1 kg

Capacidad de la fuente:

1000000pcs por día

Descripción de producto

Enerkey Hardware 80A BMS 6s 80a 3s 4s 5s 6s 7s 8s 9s 10s 12v 24v 36v Lipo Lithium /Lifepo4 Battery Management System

Product Description

Detailed Parameters

Item Details
Applicable Battery String Count: 3S - 10S Lithium Battery Pack
Continuous Discharge Current: 40A (Higher current versions can be customized upon request)
Overcharge Protection Voltage: Single Cell 4.28V±0.02V (Customizable)
Over-Discharge Protection Voltage: Single Cell 2.5V±0.05V (Customizable)
Overcurrent Protection Value: 45A - 50A (Instantaneous)
Equalization Current: 80mA - 100mA (Per Cell)
Operating Temperature: -20℃ - 80℃

Protection Board Dimensions: Length × Width × Thickness = 77.5mm × 28mm × 5mm (Specific dimensions may vary slightly depending on the number of strings and customization requirements)
Interface Type: Standard battery interface and discharge interface, compatible with common battery and device connections

Quality Assurance

Strict Material Selection: High-quality electronic components are selected, such as high-precision MOSFETs, resistors, and capacitors, to ensure the stable and reliable performance of the protection board. All components undergo rigorous quality testing and meet high industry standards.

**Exquisite Craftsmanship:** Utilizing advanced circuit board manufacturing processes and soldering techniques, the reliability and stability of circuit connections are guaranteed. Each protection board undergoes multiple meticulous processing steps and rigorous inspections to ensure

impeccable product quality.

**Comprehensive Testing:** During the production process, each protection board undergoes comprehensive functional testing, including overcharge, over-discharge, overcurrent, and short-circuit protection tests, as well as performance tests such as equalization charging and temperature management, ensuring that every protection board leaving the factory achieves optimal performance.

Enerkey Hardware 80A BMS 6s 80a 3s 4s 5s 6s 7s 8s 9s 10s 12v 24v 36v Lipo Lithium /Lifepo4 Battery Management System 0

Enerkey Hardware 80A BMS 6s 80a 3s 4s 5s 6s 7s 8s 9s 10s 12v 24v 36v Lipo Lithium /Lifepo4 Battery Management System 1

Enerkey Hardware 80A BMS 6s 80a 3s 4s 5s 6s 7s 8s 9s 10s 12v 24v 36v Lipo Lithium /Lifepo4 Battery Management System 2

Enerkey Hardware 80A BMS 6s 80a 3s 4s 5s 6s 7s 8s 9s 10s 12v 24v 36v Lipo Lithium /Lifepo4 Battery Management System 3

Technical Parameters

	Item type		Parameters
1	Parameter Overview	Product Model	EK-BM3R10S80A
		Product Size(mm)	L77.5W28T5
		Product Weight(kg)	0.1
		Product Material	FR-4 / Lead-free spray tin
		Applicable battery type	Lifepo4		Li-ion		Lto		SIB
		Applicable battery string	3S - 10S		3S - 10S		3S - 10S		3S - 10S
		Rated discharge current	80A		80A		80A		80A
		Peak starting current	160A		160A		160A		160A
	Item type		Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)
2	Charging protection	Overvoltage protection voltage value	3.65V/1S	3.50V/1S	4.25V/1S	4.05V/1S	2.85V/1S	2.75V/1S	3.95V/1S	3.80V/1S
		Overcurrent value	40A/2S, disconnect charger to recover
		Low temperature value	Charge over-temperature protection 60℃/2S / Release 55℃/2S
		Overtemperature value	Charging low temperature protection -5℃/2S / Release 0℃/2S
3	Discharge protection	Undervoltage protection voltage value	2.30V/1S	2.70V/1S	2.75V/1S	3.0V/1S	1.70V/1S	1.80V/1S	1.50V/1S	2.00V/1S
		①Overcurrent protection value	80A/2S, disconnect load or activate charging
		②Overcurrent protection value	160A/0.5S, disconnect load or activate charging
		Short circuit protection value	260A/128uS, disconnect load or charge activated
		Low temperature value	Discharge over-temperature protection 65℃/2S, release 60℃/2S
		Overtemperature value	Discharge low temperature protection -20℃/2S, release -10℃/2S
4	Others	Standby current consumption	25uA
		Motherboard lock voltage	/

Size $ Packing List

Package included:

1 * BMS

1 * NTC Terminal Cable(Please tell us if you need it with NTC)

1 * Terminal Cable

Enerkey Hardware 80A BMS 6s 80a 3s 4s 5s 6s 7s 8s 9s 10s 12v 24v 36v Lipo Lithium /Lifepo4 Battery Management System 4

Wire Diagram

Enerkey Hardware 80A BMS 6s 80a 3s 4s 5s 6s 7s 8s 9s 10s 12v 24v 36v Lipo Lithium /Lifepo4 Battery Management System 5

Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.

4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
