Modulo de diodo

Enerkey Ideal Diode 40V 80V 150A 1in3 3in1 Solar Photovoltaic Base Station Battery Charging Anti Reverse Irrigation

Todas Las Categorías

Balanceador activo inteligente

Máquina de reparación de baterías

BMS de almacenamiento de energía para vehículos recreativos

BMS de almacenamiento en el hogar

BMS de almacenamiento de vehículos eléctricos

BMS para carretillas elevadoras eléctricas

BMS de equilibrio activo inteligente para vehículos pesados

Éntrenos en contacto con

Mrs. Kiwi Xiao

kiwi@enerkey.cn

+8615387469240

Enerkey-Tech

Contacto ahora

Enerkey Ideal Diode 40V 80V 150A 1in3 3in1 Solar Photovoltaic Base Station Battery Charging Anti Reverse Irrigation

Nombre De La Marca:	Enerkey
Número De Modelo:	EK-ID40V/80V 150A 1IN3 3IN1
Cuota De Producción:	10 piezas
Precio:	$88.2-$95.8
Detalles Del Embalaje:	Caja de papel fuerte +espuma EVA
Condiciones De Pago:	L/C, D/A, D/P, T/T, Western Union, Moneygram

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Shenzhen, China

Certificación:

ISO9001/CE/ROHS

Nombre del producto:

40V 80V 150a 1in3 3in1 diodo ideal

Espesor de cobre:

Aplicación 1:

Los paneles solares evitan las lluvias

Espesor de la tabla:

3.0 mm

Aplicación 2:

Modificación del Rv

Rango de voltaje operativo permitido:

9-40V/80V

Corriente inactiva:

0.6-1.5MA

Corriente continua permitida:

0-450A

Material base:

Sustrato de aluminio

Acabado superficial:

HASL sin plomo

Tamaño del producto:

L195XW67XT25 mm

Peso con paquete:

0,9 kg

Capacidad de la fuente:

10000 piezas por día

Descripción de producto

Enerkey Ideal Diode 40V 80V 150A 1in3 3in1 Solar Photovoltaic Base Station Battery Charging Anti Reverse Irrigation

Product Description

1. Low Capacitance

Ideal Feature: An ideal diode has negligible junction capacitance, ensuring there is minimal charge storage during switching transitions.

Real-world Application: Helps to reduce switching losses and improves overall efficiency in high-frequency circuits.

2. High Reverse Recovery Rate (for Fast Switching)

Ideal Feature: The diode immediately stops conducting when the current reverses direction.

Real-world Application: Critical in applications where the diode needs to react quickly to changes in current, such as in switching power supplies or RF applications.

3. Robust Overload Handling

Ideal Feature: Can handle high overloads without degradation or damage, ensuring reliability and longevity.

Real-world Application: Protects sensitive circuits and devices from damage under extreme conditions.

Enerkey Ideal Diode 40V 80V 150A 1in3 3in1 Solar Photovoltaic Base Station Battery Charging Anti Reverse Irrigation 0

Enerkey Ideal Diode 40V 80V 150A 1in3 3in1 Solar Photovoltaic Base Station Battery Charging Anti Reverse Irrigation 1

Enerkey Ideal Diode 40V 80V 150A 1in3 3in1 Solar Photovoltaic Base Station Battery Charging Anti Reverse Irrigation 2

Enerkey Ideal Diode 40V 80V 150A 1in3 3in1 Solar Photovoltaic Base Station Battery Charging Anti Reverse Irrigation 3

Enerkey Ideal Diode 40V 80V 150A 1in3 3in1 Solar Photovoltaic Base Station Battery Charging Anti Reverse Irrigation 4

Technical Parameters

Enerkey Ideal Diode Module 40V 60V 80V 100V 150V 200V 150A 1in3 3in1 Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
Product model	EK-iD40V150A	EK-iD60V150A	EK-iD80V150A
Working voltage range	9-40V	9-60V	9-80V
Product Size(mm)	L195W67T25	L195W67T25	L195W67T25
Weight with box	0.9kg	0.91kg	0.92kg
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Continuous current	450A
Peak starting current	450A
Quiescent operating current	0.6-1.5mA
Copper foil thickness	3.0 oz
PCB material	Aluminum plate
On-going internal resistance	NA
Working principle	The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast.
Application	1. Solar panels prevent backflow (anti-backflow); 2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required
Accessories	Terminal lug13; IN+/OUT+ terminal lug : OTZ25-6, screw M6 12 GND terminal lug : OTZ2.5-3, screw M3 *1
Operating Temperature	-40℃ ~ +60℃

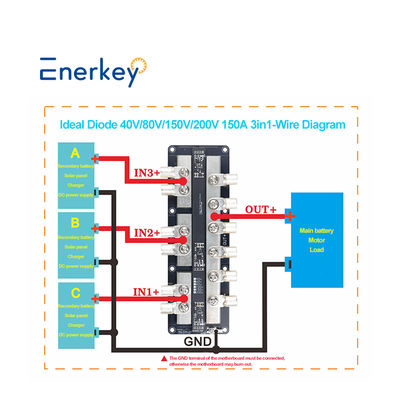

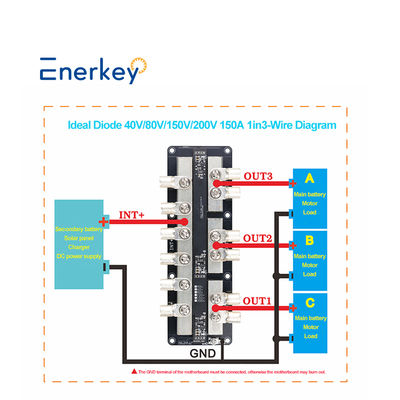

Size & Packing List & Wire Diagram

Enerkey Ideal Diode 40V 80V 150A 1in3 3in1 Solar Photovoltaic Base Station Battery Charging Anti Reverse Irrigation 5

Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;

2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems.

The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.

4. This ideal diode module cannot be used in rectifier circuits!

Enerkey Ideal Diode 40V 80V 150A 1in3 3in1 Solar Photovoltaic Base Station Battery Charging Anti Reverse Irrigation 6

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
