BMS de equilibrio activo inteligente para vehículos pesados

Enerkey Smart Active Balance BMS EK-B24S8E300A 16S-24S 15A-300A BMS with Active Equalization 1A-8A Support CAN/RS485

Todas Las Categorías

Balanceador activo inteligente

Máquina de reparación de baterías

BMS de almacenamiento de energía para vehículos recreativos

BMS de almacenamiento en el hogar

BMS de almacenamiento de vehículos eléctricos

BMS para carretillas elevadoras eléctricas

BMS de equilibrio activo inteligente para vehículos pesados

Éntrenos en contacto con

Mrs. Kiwi Xiao

kiwi@enerkey.cn

+8615387469240

Enerkey-Tech

Contacto ahora

Enerkey Smart Active Balance BMS EK-B24S8E300A 16S-24S 15A-300A BMS with Active Equalization 1A-8A Support CAN/RS485

Nombre De La Marca:	Enerkey
Número De Modelo:	EK-B24S8E300A
Cuota De Producción:	5 piezas
Precio:	$157.5-$172.8
Detalles Del Embalaje:	Caja de papel fuerte + espuma EVA
Condiciones De Pago:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Shenzhen, China

Certificación:

ISO9001/CE/ROHS

Nombre del producto:

16s-24s 300A Balanceador Activo Inteligente BMS

Corriente activa de equilibrio:

1A-8A (ajustable)

Aplicación:

almacenamiento de energía de alta potencia, fuente de alimentación de reserva de la estación base

Corriente continua de carga/descarga:

15A-300A (Ajustable)

Tipo de batería:

Paquete de baterías de litio/Lifepo4/Lto/SIB

Rango de recolección de voltaje de celda única:

1.5V～4.5V

Puerto de comunicación:

Las condiciones de las condiciones de ensayo se determinarán en el anexo IV.

Precisión de voltaje balanceado:

1mV (Ajustable)

Material Base:

El número de unidades de producción será el siguiente:

las cuerdas de las baterías:

16S-24S (NCM/LFP) 20S-24S (LTO/SIB

Tamaño del producto:

L237 x A107 x P24.5 (mm)

Peso del paquete:

1.5 kg

Capacidad de la fuente:

10000 piezas por día

Descripción de producto

Enerkey Smart Active Balance BMS EK-B24S8E300A 16S-24S 15A-300A BMS with Active Equalization 1A-8A Support CAN/RS485

Product Description

Electric Vehicles bms with RS485/ CAN ,Lithium LFP/NMC/LTO/SIB Battery Pack 16S 48V 24S 72V 100A/150A/200A/250A/300A 8A Active Balance Management System Parallel BMS, which can be connected to the PC master , Bluetooth APP to intelligently manage of the lithium battery. Supporting and customization inverter protocols.

Electric Vehicles bms features:
* Be integrated with interface board with one dry contact and four DIP switch, 8A active balancer；
* Supports RS485, and CAN communication functions, can be used to monitor data and set parameters by PC software；
* Be compatible with the following inverter: Voltronicpower, Growatt, SRNE, Pylon, DeYe, SMA, Aiswei, Victronenergy, Must.
* Supports Bluetooth module, using with SMART BMS app, to monitor data, set parameters

The APP has two versions of Android system and IOS system, both support Chinese and English

For IOS phone, You can directly search "Enerkey" in appstore
For Android phone, Please directly search "Enerkey" in google play store

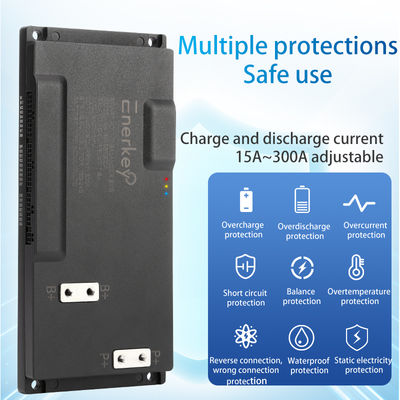

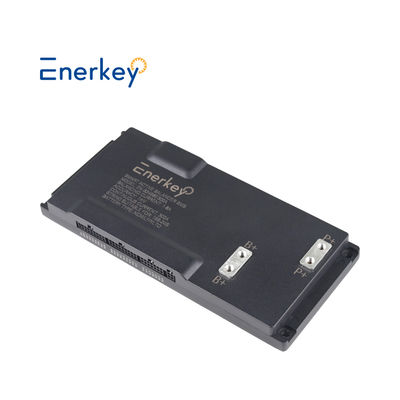

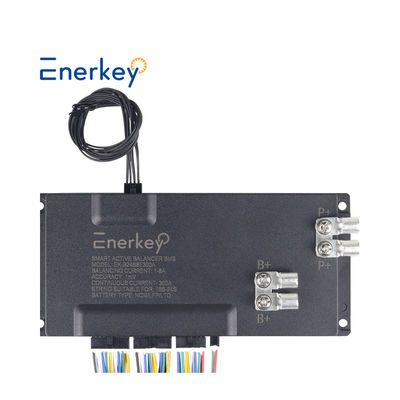

Enerkey Smart Active Balance BMS EK-B24S8E300A 16S-24S 15A-300A BMS with Active Equalization 1A-8A Support CAN/RS485 0

Enerkey Smart Active Balance BMS EK-B24S8E300A 16S-24S 15A-300A BMS with Active Equalization 1A-8A Support CAN/RS485 1

Enerkey Smart Active Balance BMS EK-B24S8E300A 16S-24S 15A-300A BMS with Active Equalization 1A-8A Support CAN/RS485 2

Enerkey Smart Active Balance BMS EK-B24S8E300A 16S-24S 15A-300A BMS with Active Equalization 1A-8A Support CAN/RS485 3

Enerkey Smart Active Balance BMS EK-B24S8E300A 16S-24S 15A-300A BMS with Active Equalization 1A-8A Support CAN/RS485 4

Enerkey Smart Active Balance BMS EK-B24S8E300A 16S-24S 15A-300A BMS with Active Equalization 1A-8A Support CAN/RS485 5

Techinal Parameters

Item	Smart Active Balancer BMS
Product Model	EK-B24S8E200A	EK-B24S8E250A	EK-B24S8E300A
Product size	L237 x W107 x T24.5(mm)
Product weight	1500g
Single cell voltage collection range	1.5V～4.5V
Communication ports	CAN/485
Outlet mode	Same ports
Product material	Aluminum alloy, PC plastic, FR-4/lead-free tin-spraying
Battery protection parameters
Continuous discharge current	120A Default 15A～200A adjustable	120A Default 15A～250A adjustable		120A Default 15A～300A adjustable
Continuous charge current	200A Default 15A～200A adjustable	250A Default 15A～250A adjustable		300A Default 15A～300A adjustable
Battery type	NCM	LFP		LTO
Battery string number	16S～24S	16S～24S		20S～24S
Single cell overcharge protection value	4.200V	3.650V		2.700V
Single cell overcharge recovery value	4.000V	3.450V		2.400V
Single cell undervoltage protection value	2.900V	2.600V		1.600V
Single cell undervoltage recovery value	3.100V	2.900V		1.800V
Equalization parameters
Active balancing current	1A～8A(adjustable)
Balanced voltage accuracy	1mV(adjustable)
Start balancing voltage difference value	0.001V～5.000V(adjustable)
Stop balancing voltage difference value	0.001V～5.000V(adjustable)
Balanced start voltage value	1.500V～4.500V(adjustable)
Balanced stop voltage value	1.500V～4.500V(adjustable)
Temperature protection parameters
Charge over-temperature protection	Default 60℃/30℃～80℃ (adjustable)
Charge over-temperature recovery	Default 50℃/30℃～80℃ (adjustable)
Charge low-temperature protection	Default -2℃/-40℃～20℃(adjustable)
Charge low-temperature recovery	Default 2℃/-40℃～20℃(adjustable)
Discharge over-temperature protection	Default 60℃/30℃～80℃(adjustable)
Discharge over-temperature recovery	Default 50℃/30℃～80℃(adjustable)
Discharge low-temperature protection	Default -10℃/-40℃～20℃(adjustable)
Discharge low-temperature recovery	Default -5℃/-40℃～20℃(adjustable)

Packing List

Enerkey Smart Active Balance BMS EK-B24S8E300A 16S-24S 15A-300A BMS with Active Equalization 1A-8A Support CAN/RS485 6

Wire Diagram

Precautions:

①. Installing the protection equalization board requires a certain amount of electronic knowledge.

②. Welding the cable: The first cable (black line) is connected to the total negative pole of the battery, the second cable (red line) is connected to the positive pole of the first battery string, and the third cable (red line) is connected to the positive pole of the second battery string... and so on, connect all the cables;

③. Detect the cable: After connecting the cable, measure the voltage between two adjacent cables from the head of the cable to confirm that there is no problem of wrong connection or missing connection in the welding sequence of the cable.

④. Connect the B+ line of the protection board to the total positive pole of the battery, and then connect the sampling cable plug to the protection board. After activating the protection board, confirm that the voltage before the board (battery voltage B+.B-) and the voltage after the board (P+.P-) are consistent.

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ion and LTO and SIB batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

If you have any advices or requests, Warmly welcome your consulting.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
